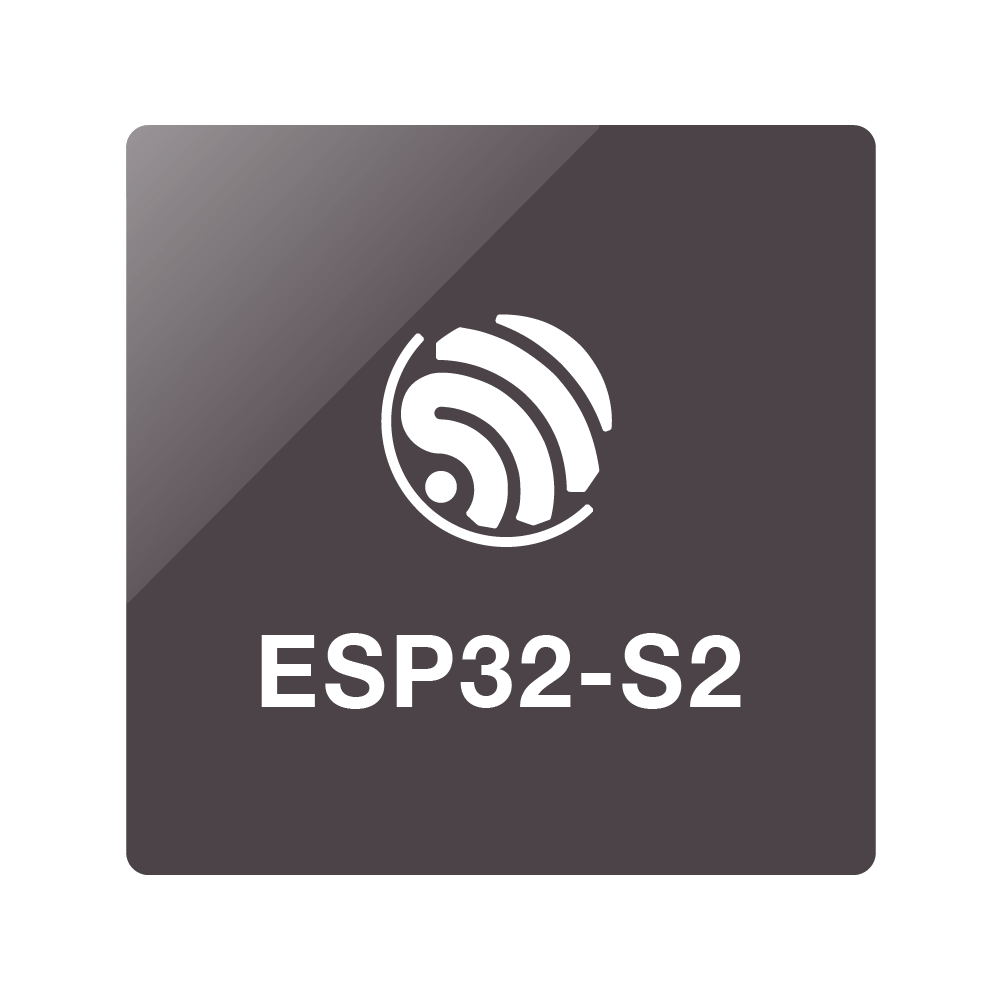

ESP32-S2 시리즈 소개

  ESP32-S2는 WiFi단독형 제품 입니다.

• ESP32-S2 embedded, Xtensa® single-core 32-bit LX7 microprocessor, up to 240 MHz
• Ultra-low-power performance: fine-grained clock gating, dynamic voltage and frequency scaling
• Security features: eFuse, flash encryption, secure boot, signature verification, integrated AES, SHA and RSA algorithms
• Peripherals include 43 GPIOs, 1 full-peed USB OTG interface, SPI, I2S, UART, I2C, LED PWM, LCD interface, camera interface, ADC, DAC, touch sensor, temperature sensor
• Availability of common cloud connectivity agents and common product features shortens the time to market
• Fully certified with integrated antenna and software stacks

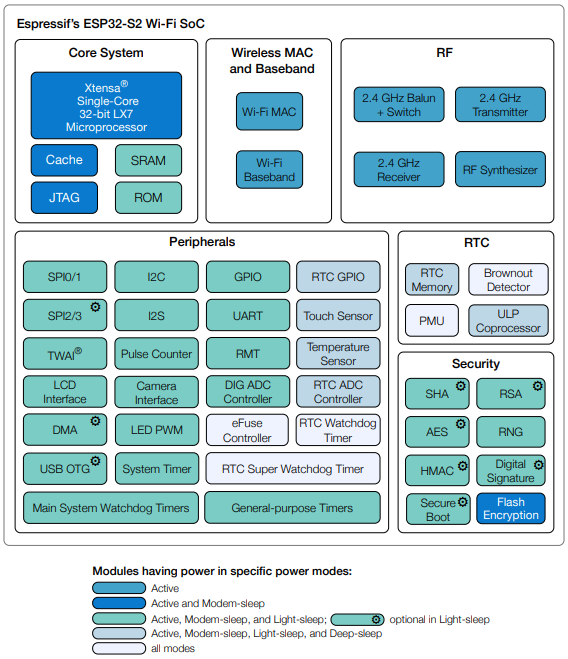

ESP32-S2 function 블럭도





  ESP32-S2 칩을 내장한 주요 모듈 제품



ESP32-S2-MINI-2 / ESP32-S2-MINI-2U

• ESP32-S2FH4, ESP32-S2FN4R2 내장
• Flash 4MB, Flash 4MB+PSRAM 2MB지원
• 65pin, size 15.4×20×2.4mm
• PCB antenna, IPEX connector

ESP32-S2-SOLO-2 / ESP32-S2-SOLO-2U

• ESP32-S2, ESP32-S2R2 내장
• Flash 4MB, 8MB, 16MB, PSRAM 2MB 선택 가능
• 41pin, size 18x25.5x3.1mm
• PCB antenna, IPEX connector



---
