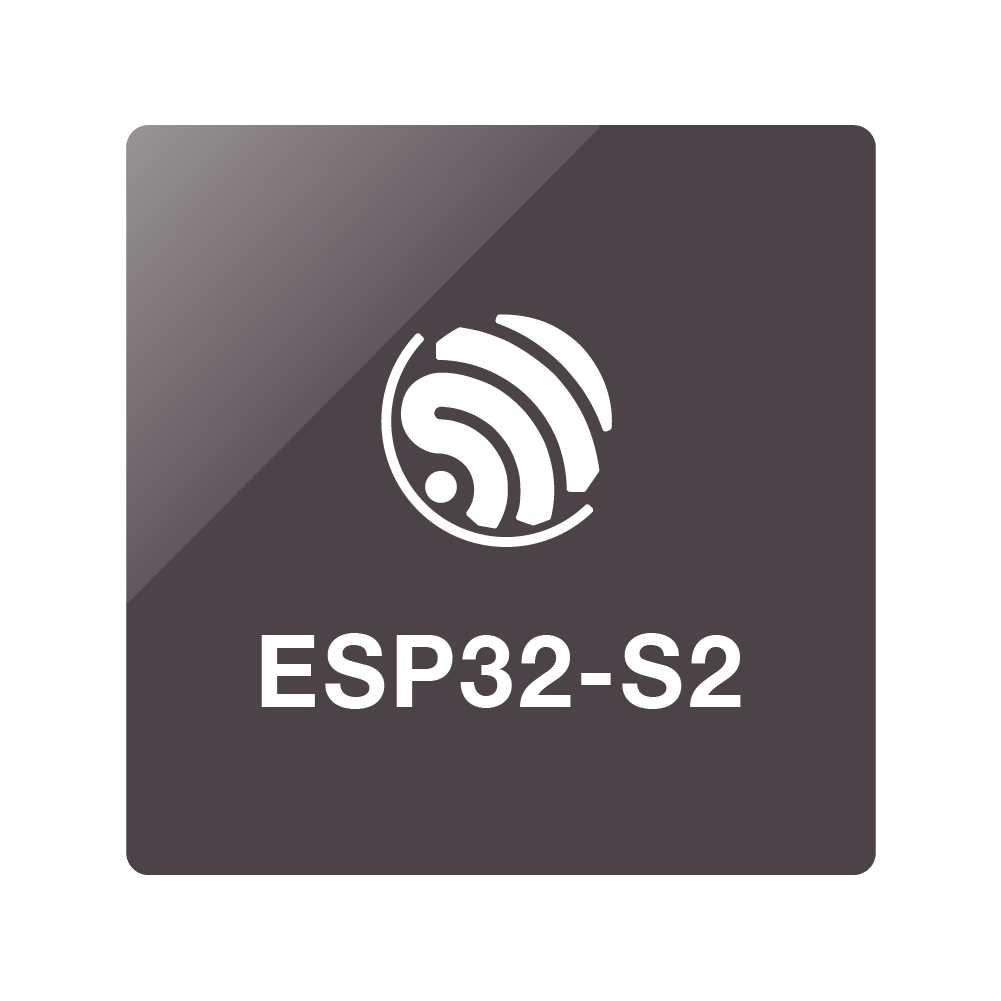

ESP32-S2 시리즈 소개
Products/ESP32-S22023. 10. 27. 14:29

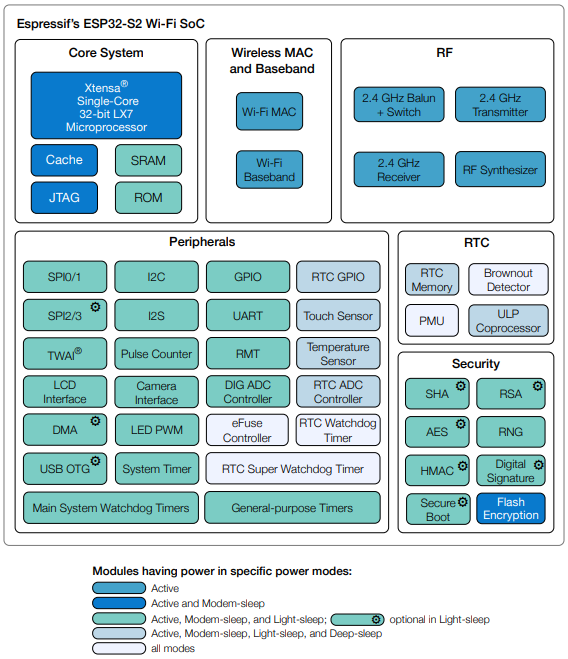

ESP32-S2는 WiFi단독형 제품 입니다.

- ESP32-S2 embedded, Xtensa® single-core 32-bit LX7 microprocessor, up to 240 MHz
- Ultra-low-power performance: fine-grained clock gating, dynamic voltage and frequency scaling
- Security features: eFuse, flash encryption, secure boot, signature verification, integrated AES, SHA and RSA algorithms
- Peripherals include 43 GPIOs, 1 full-peed USB OTG interface, SPI, I2S, UART, I2C, LED PWM, LCD interface, camera interface, ADC, DAC, touch sensor, temperature sensor
- Availability of common cloud connectivity agents and common product features shortens the time to market
- Fully certified with integrated antenna and software stacks

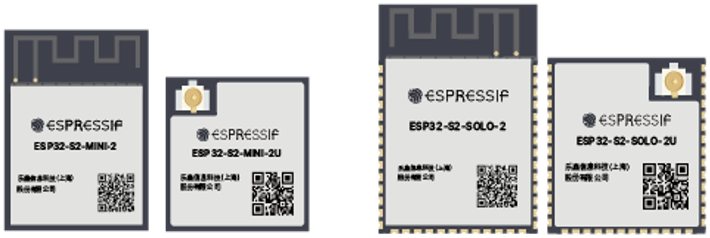

ESP32-S2 칩을 내장한 주요 모듈 제품
ESP32-S2-MINI-2 / ESP32-S2-MINI-2U
- ESP32-S2FH4, ESP32-S2FN4R2 내장
- Flash 4MB, Flash 4MB+PSRAM 2MB지원
- 65pin, size 15.4×20×2.4mm
- PCB antenna, IPEX connector
ESP32-S2-SOLO-2 / ESP32-S2-SOLO-2U
- ESP32-S2, ESP32-S2R2 내장
- Flash 4MB, 8MB, 16MB, PSRAM 2MB 선택 가능
- 41pin, size 18x25.5x3.1mm
- PCB antenna, IPEX connector
