ESP32-C5 듀얼밴드 WiFi+BLE+Zigbee(Thread)콤보 솔루션

Products/ESP32-C5|2025. 5. 27. 09:51

  ESP32-C5 소개



  • 프로세서: 32비트 RISC-V 싱글 코어, HP core 240 MHz + LP core 48Mhz
  • 무선 연결: 2.4Ghz + 5Ghz Wi-Fi 6 (802.11ax), Bluetooth 5/6 (LE), Zigbee3.0, Thread 1.4
  • 플래시/RAM: 외부 SPI 플래시 및 PSRAM 지원
  • GPIO: 최대 22개의 GPIO
  • 보안: 보안 부트, 플래시 암호화, 디지털 서명, HMAC 등
  • 패키지: QFN48 (6mm x 6mm)
  • 전원 관리: 저전력 설계, 다양한 슬립 모드 지원

  무선 (RF)



  • Wi-Fi 6 (802.11ax): 2.4/5 GHz Dual band, Target Wake Time (TWT), BSS Coloring 지원. 높은 동시 연결성과 저전력 효율성 제공.
  • Bluetooth 5 /6(LE): BLE Long Range 지원, BLE extended adv, BLE Long Range 지원.
  • Zigbee 3.0 / Thread 1.4 (MATTER) 지원



  보안기능



  • 보안 부트 (Secure Boot)
  • Flash 암호화 (Flash Encryption)
  • 디지털 서명 (Digital Signature)
  • Cryptographic hardware acceleration(AES,SHA,RSA,ECC,HMAC,DSA,ECDSA)
  • External memory encryption and decryption (XTS_AES)
  • True random number generator (TRNG)
  • Access permission management (APM) and trusted execution environment (TEE) controller
  • Power glitch detector

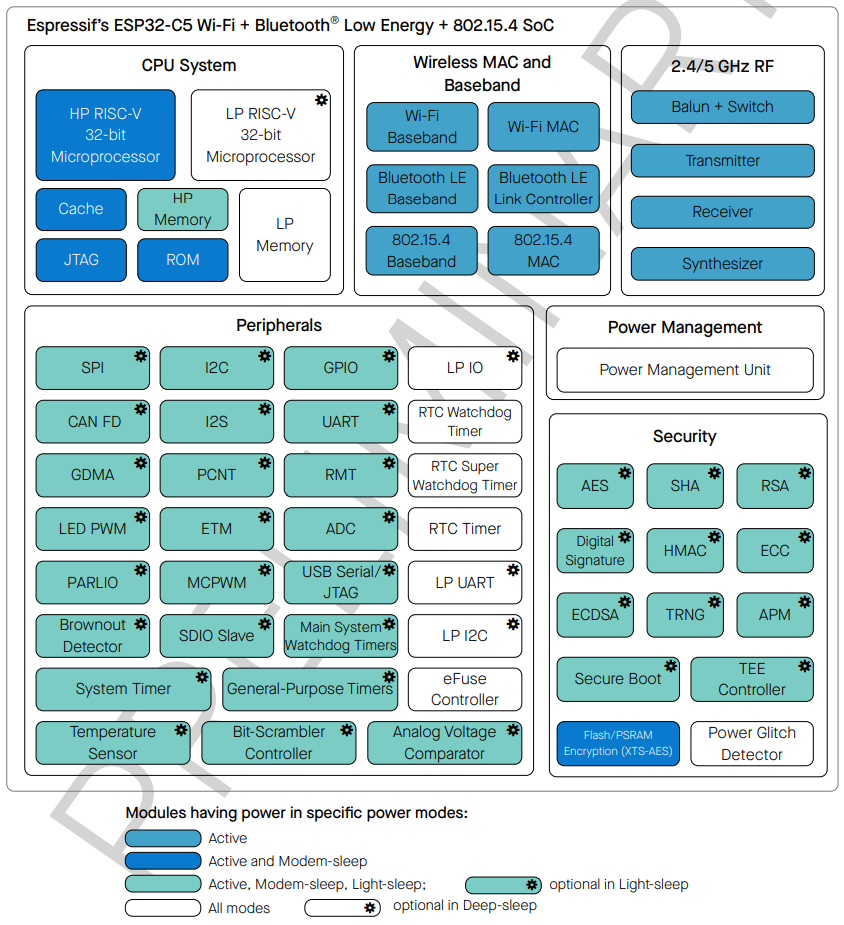

  IC block diagram







  DATASHEET 다운로드



https://www.espressif.com/sites/default/files/documentation/esp32-c5_datasheet_en.pdf



https://www.espressif.com/sites/default/files/documentation/esp32-c5-wroom-1_wroom-1u_datasheet_en.pdf



https://www.espressif.com/sites/default/files/documentation/esp32-c5_technical_reference_manual_en.pdf



  하드웨어 가이드



https://docs.espressif.com/projects/esp-hardware-design-guidelines/en/latest/esp32c5/index.html



ESP Hardware Design Guidelines - ESP32-C5 - — ESP Hardware Design Guidelines latest documentation

This document provides guidelines for the ESP32-C5 SoC. To switch to another chip, use the drop-down menu at the top left of the page. Latest Version of This Document The document you are reading is the latest version. The full history of releases can be f

docs.espressif.com
