ESP32-S3-MINI-1 / 1U

by Espressif 제품 소개 2023. 10. 24.

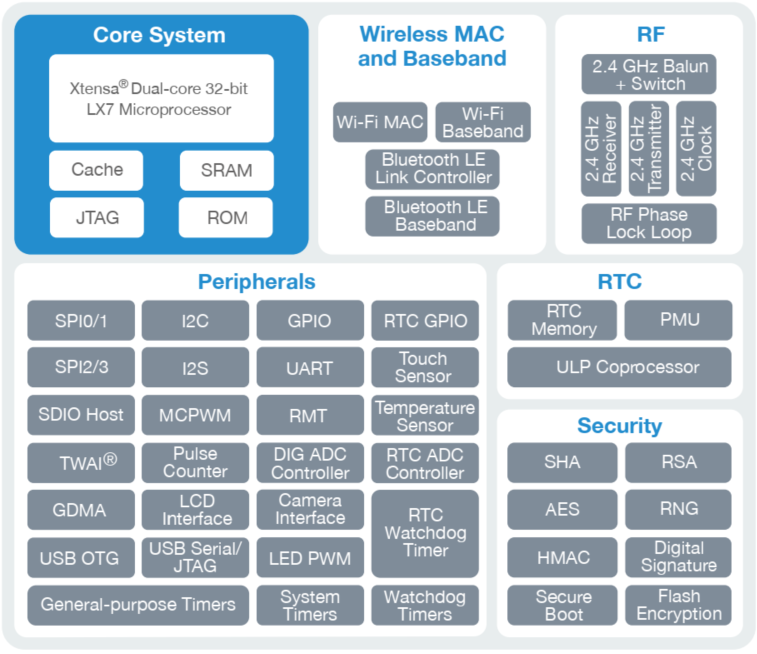

ESP32-S3-MINI-1 / 1U 모듈 소개

  • Main IC : ESP32-S3
  • MCU : Xtensa 32-bit LX7 dual-core processor with a five-stage pipeline that operates at up to 240 MHz
  • MCU perfomance :  CoreMark : 1181.60 (2core), 4.92 CoreMark/MHz
  • Memory : 384 KB ROM, 512 KB SRAM, 8MB Flash, 4MB Flash + 2MB PSRAM
  • WiFi : 802.11b/g/n HT20, HT40, WMM, A-MPDU, A-MSDU, 802.11mc FTM, WiFi MESH
  • Bluetooth : BLE5.0, Long range, MESH
  • Peripherals : 45 programmable GPIOs: UART, SPI, I2C, I2S, PWM, ADC, TWAI, 14 capacitive Touch GPIOs, USB OTG v1.1
  • Security :  RSA-3072-based secure boot, AES-128/256-XTS-based flash encryption, Digital signature peripheral and the HMAC peripheral, “World Controller” peripheral that provides two fully-isolated execution environments

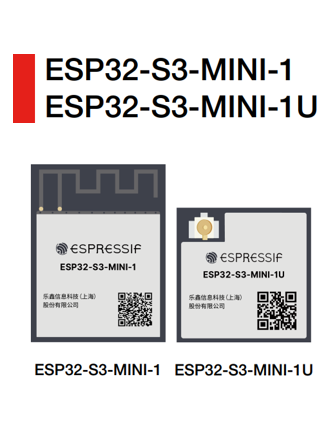

제품 사진



ESP32-S3-MIMI-1과 ESP32-S3-MINI-1U는 Pin to pin 호환

제품 옵션

파트 Flash PSRAM Temp Size
ESP32-S3-MINI-1-N8 8MB QIO x -40~85C 15.4x20.5x2.4mm
ESP32-S3-MINI-1-N4R2 4MB QIO 2MB QIO -40~85C 15.4x20.5x2.4mm
ESP32-S3-MINI-1U-N8 8MB QIO x -40~85C 15.4x15.4x2.4mm
ESP32-S3-MINI-1U-N4R2 4MB QIO 2MB QIO -40~85C 15.4x15.4x2.4mm

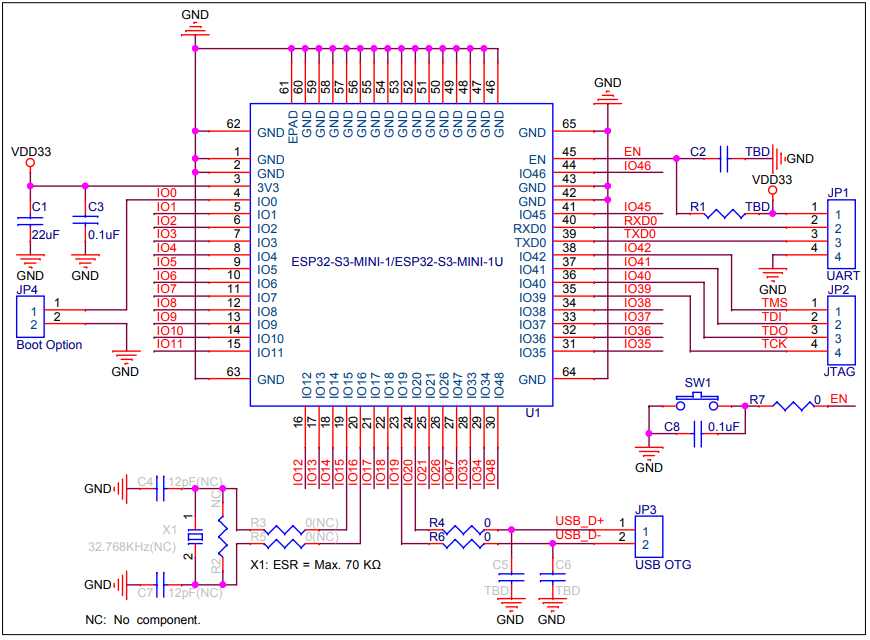

응용 회로도

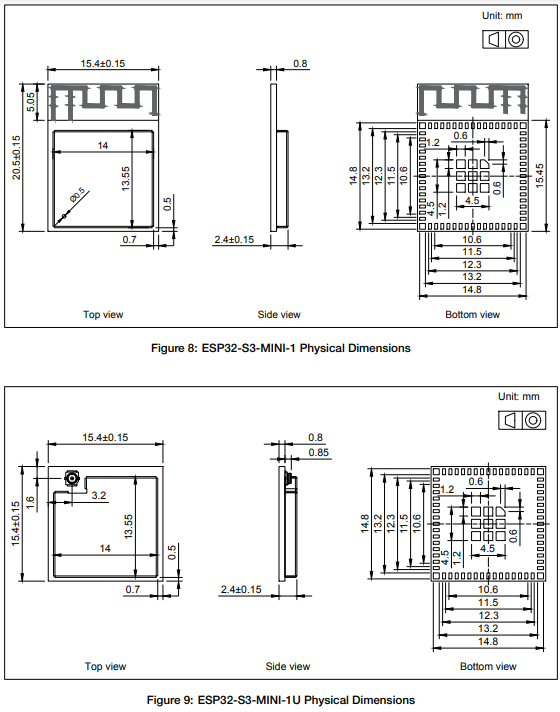

모듈 도면





자료 다운로드



DATASHEET 다운로드

https://www.espressif.com/sites/default/files/documentation/esp32-s3-mini-1_mini-1u_datasheet_en.pdf



SDK 다운로드

https://docs.espressif.com/projects/esp-idf/en/latest/esp32s3/get-started/index.html



Get Started - ESP32-S3 - — ESP-IDF Programming Guide latest documentation
